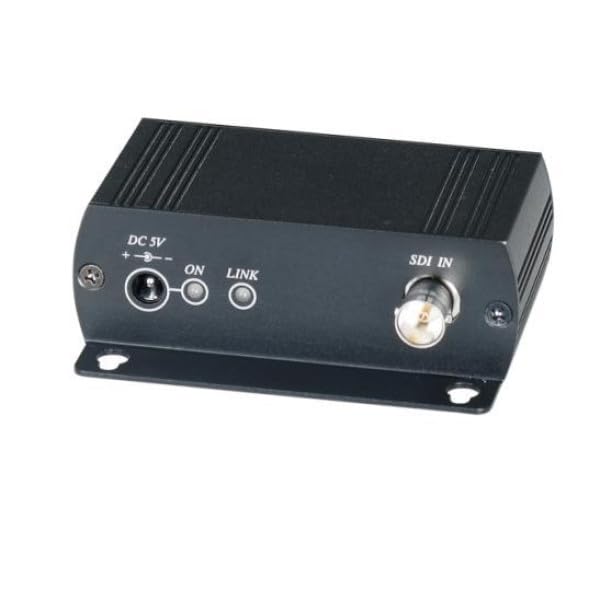

1 Input 4 Output HD-SDI Distribution Video Amplifier HD Signal Distance Total up to 1300Feet
Product details
| Management number | 221445616 | Release Date | 2026/05/03 | List Price | $111.60 | Model Number | 221445616 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

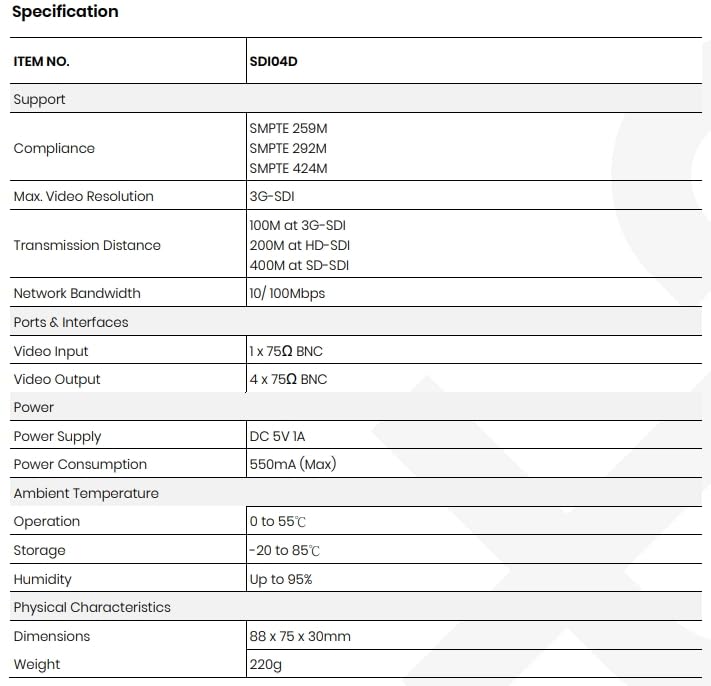

The SDI04D is a professional 1-in-4-out SDI distribution amplifier designed for high-performance video signal management. This versatile device splits a single SDI input into four separate outputs, supporting resolutions up to 3G-SDI with transmission distances reaching up to 400M over RG6U coaxial cables. With its advanced re-clocking function, it effectively reduces accumulated jitter and ensures precise video display. The unit features comprehensive support for multiple SDI standards including SMPTE 259M, 292M, and 424M, making it compatible with SD-SDI, HD-SDI, and 3G-SDI signals. Its robust build includes 75Ω BNC connections for reliable signal transfer, while operating efficiently with a DC 5V 1A power supply and minimal power consumption of 550mA max. The compact dimensions of 3.46 x 2.95 x 1.18 inches and lightweight design at just 7.76 ounces make it ideal for various installation scenarios. The device operates reliably in temperatures from 32°F to 131°F and includes LED indicators for power and link status monitoring. For optimal performance, high-quality 75Ω coaxial cables and BNC connectors are recommended for signal integrity and maximum transmission distance.
- SDI DISTRIBUTION: 1-in-4-out SDI distribution amplifier splits one SDI input signal into 4 identical SDI output signals for connection to monitors, recorders, DVRs, and other SDI devices

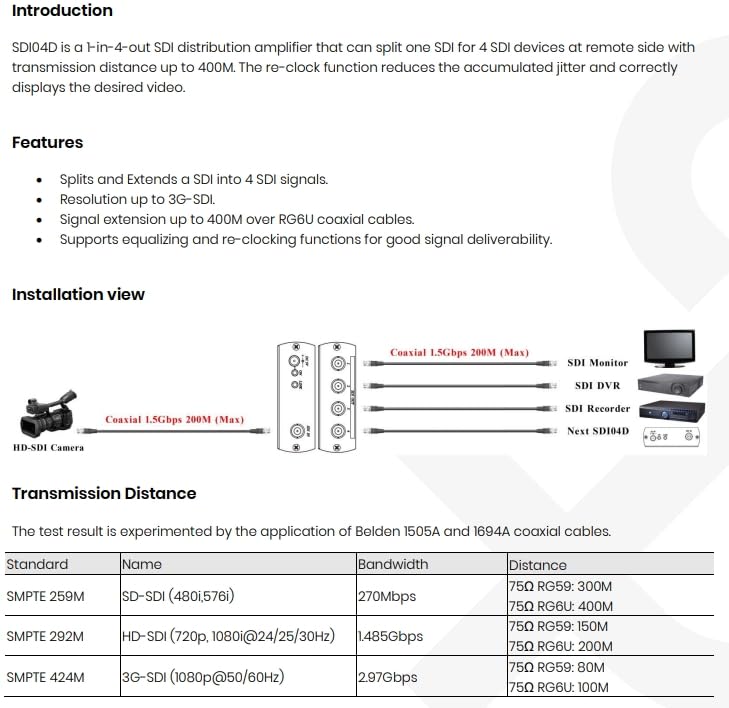

- LONG DISTANCE TRANSMISSION: Supports signal extension up to 400M over RG6U coaxial cables at SD-SDI, 200M at HD-SDI, and 100M at 3G-SDI resolution with re-clocking function to reduce jitter
- HIGH RESOLUTION SUPPORT: Compatible with 3G-SDI, HD-SDI, and SD-SDI formats with resolution up to 3G-SDI (1080p@50/60Hz) and bandwidth up to 2.97Gbps for professional video applications

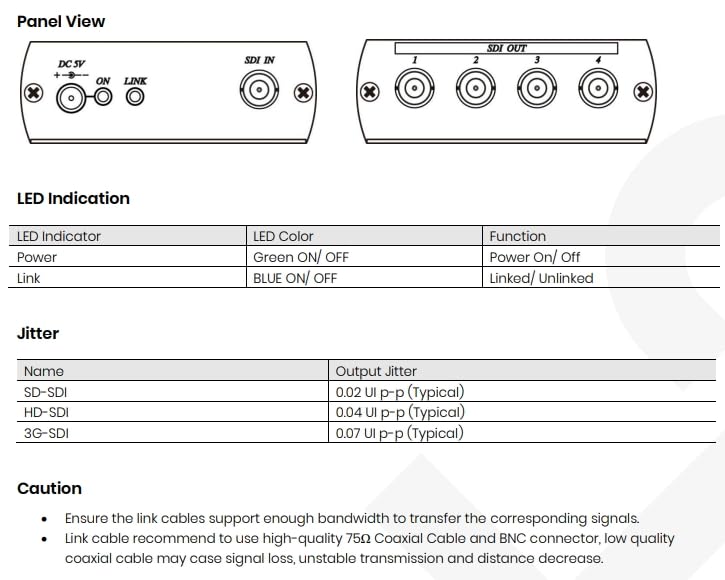

- PROFESSIONAL CONNECTIVITY: Features 1 x 75Ω BNC video input and 4 x 75Ω BNC video outputs with LED indicators for power (green) and link status (blue) for easy monitoring
- COMPACT DESIGN: Measures 3.46 x 2.95 x 1.18 inches and weighs 7.76 ounces, operates from 0 to 55°C with DC 5V 1A power supply and maximum power consumption of 550mA
| Model | BL SDI04D |
|---|---|
| Brand Name | Generic |
| Part Number | BL SDI04D |
| Manufacturer | Generic |
| Item Dimensions | 7 x 7 x 5 inches |
| Included Components | Power Supply |
