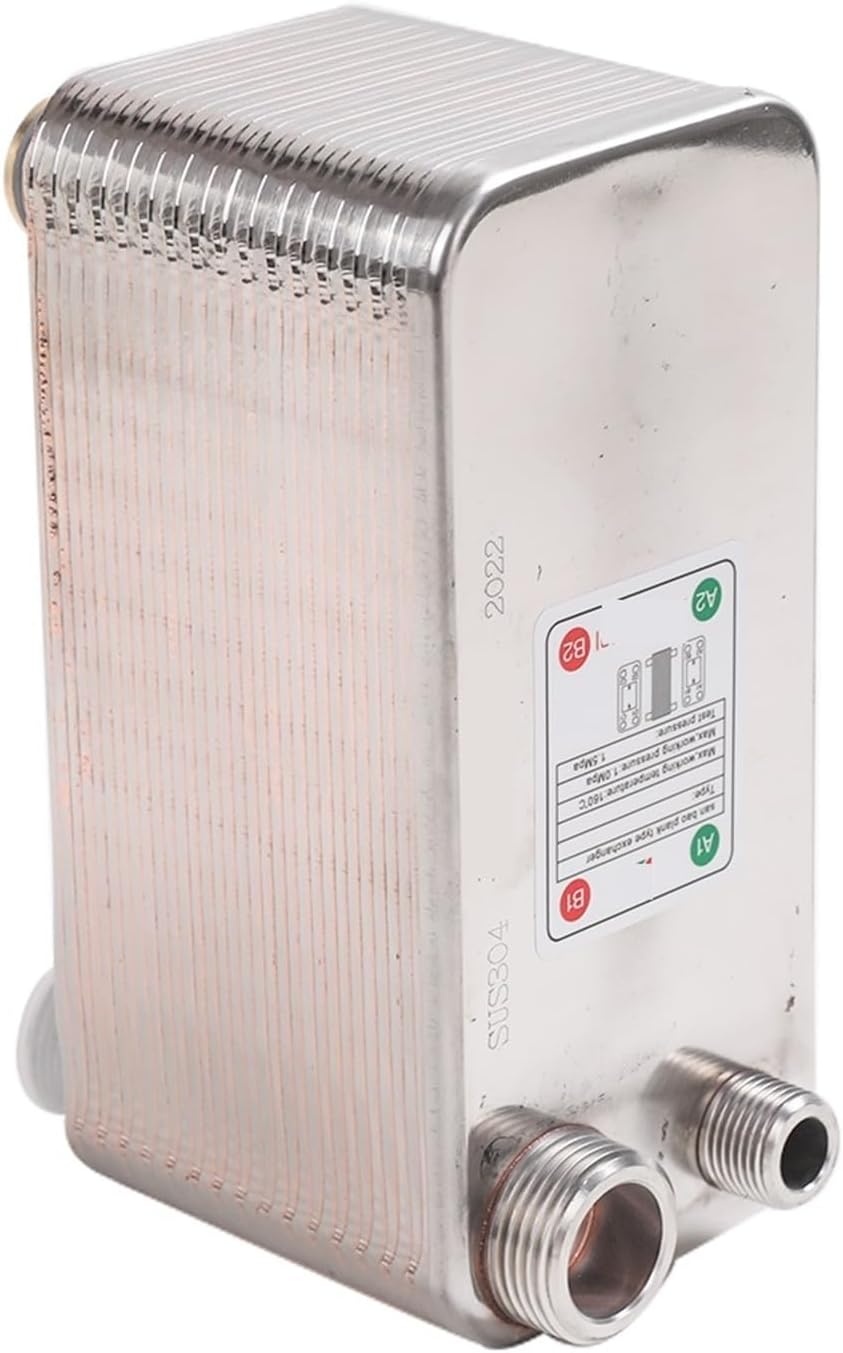

32 Plate Heat Exchanger Beer Wort Chiller Cooler SUS 304 Stainless Steel for Homebrew Cooling,Brazed Plate Type Water Heater(Same Side)

32 Plate Heat Exchanger Beer Wort Chiller Cooler SUS 304 Stainless Steel For Homebrew Cooling,Brazed Plate Type Water HeaterPlate heat exchanger, suitable for domestic hot water conversion, ordinary heating, multi-channel heating switching, air energy, solar energy, multi-channel gas wall-hung boiler integrated heating, wort beer cooling, non-pressure boiler to pressure, swimming pool, etc.Tap water interface: 20mm outer diameterHeating interface:25mm outer diameter selection(if you need 32mm outer diameter, leave a message to inform us of the interface caliber)Specification:Name: Brazed plate type heat exchangerMaterial:SUS 304 Stainless Steel, food gradeWeldIing Material: 99.9% CopperApplication:Home Brew Wort Chiller, Famliy Hot Water supplyThread of Port A1,A2:1/2" BSPT MaleThread of Port B1,B2:1" BSPT MalePlates Number: 32 platesHeat Transfer Area/plate: 0.028 m2(0.30 ft2) Thickness of Plate:0.25-0.35mmMax Flowrate:12 m3/HWorking Temperature:-160 to + 185 Below 50 plates: suitable for washing hands and face60-80 plates: suitable for kitchen washing dishes and dishes.100-120 plates: can support bathing, mainly depends on the heat source's ability to supply heat.Heat exchange rate: 85%Heat source heating capacity> 50 ° C hot water temperature, comfortable bathing<;50 ° C, hot water temperature, average bathing experience (winter)Options Instruction:Same side: mean the 4 ports are in the same sideDifferent side: mean the 4 ports are in different side, each side with 2 ports.==========Product Type : Wort ChillersMaterial : Stainless SteelPlates : 32Feature 1 : 32 Plate Heat ExchangerFeature 2 : Beer Wort Chiller CoolerFeature 3 : SUS 304 Stainless SteelFeature 4 : Homebrew Cooling

• 【Compact Design】feature a design with high thermal conductivity, small size, and minimal space requirements, making them ideal for installations in confined spaces.
• 【High Heat Transfer Efficiency】Due to the corrugated plate design, BPHEs achieve efficient heat transfer and good fluid distribution, enhancing overall heat exchange efficiency.
• 【Low Maintenance Cost】The structure of it lacks gaskets and seals, reducing potential leakage points and maintenance needs, thereby lowering maintenance costs and frequency.
• 【Versatility】it can handle various fluids, including cooling water, refrigerants, and other industrial fluids, making them suitable for a wide range of applications.
• 【Modular Design】The heat exchange area and capacity can be adjusted according to specific requirements, meeting different process demands and application needs.
