eletechasup ETHUB18 8CH RS485 HUB Converter Modbus TCP/RTU MQTT HTTP, Industrial Ethernet to 8 Ports with TVS Protection DIN Rail DC7-30V for PLC SCADA Smart Home Automation (with Rail Box)

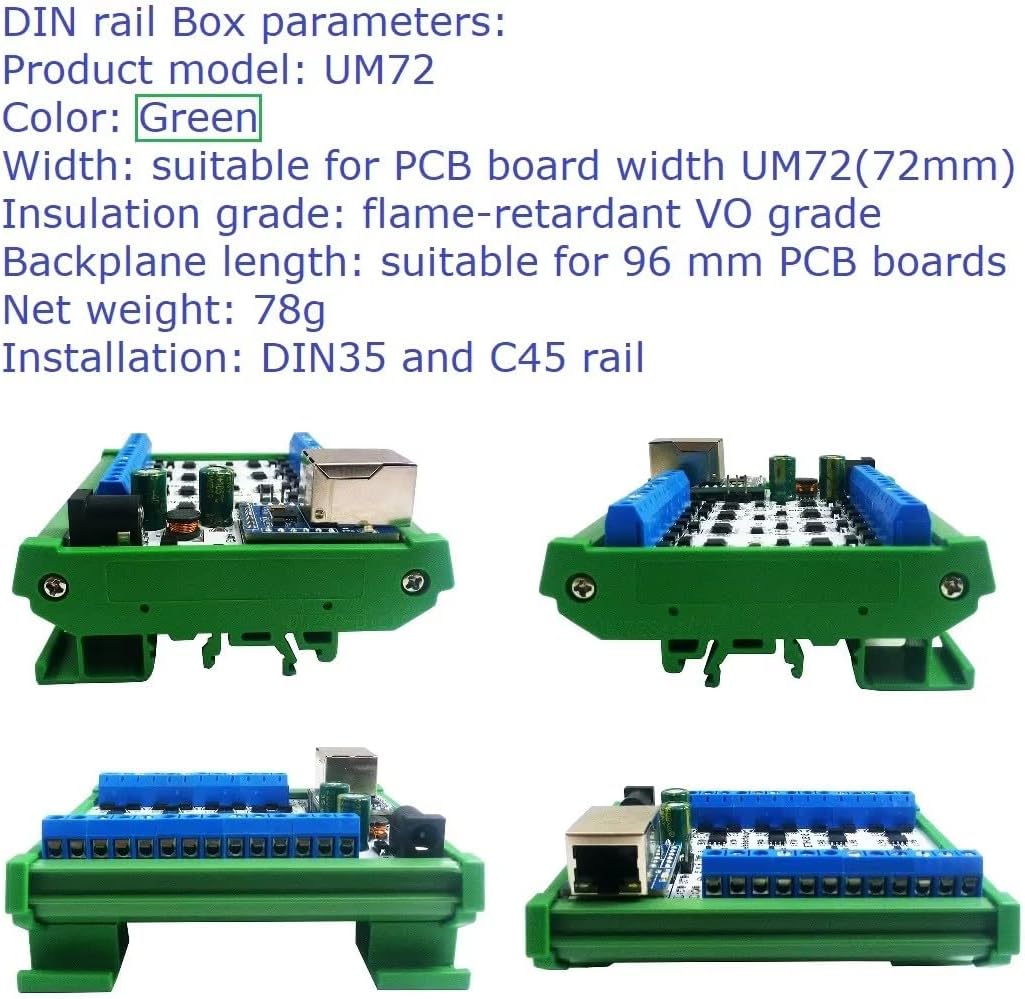

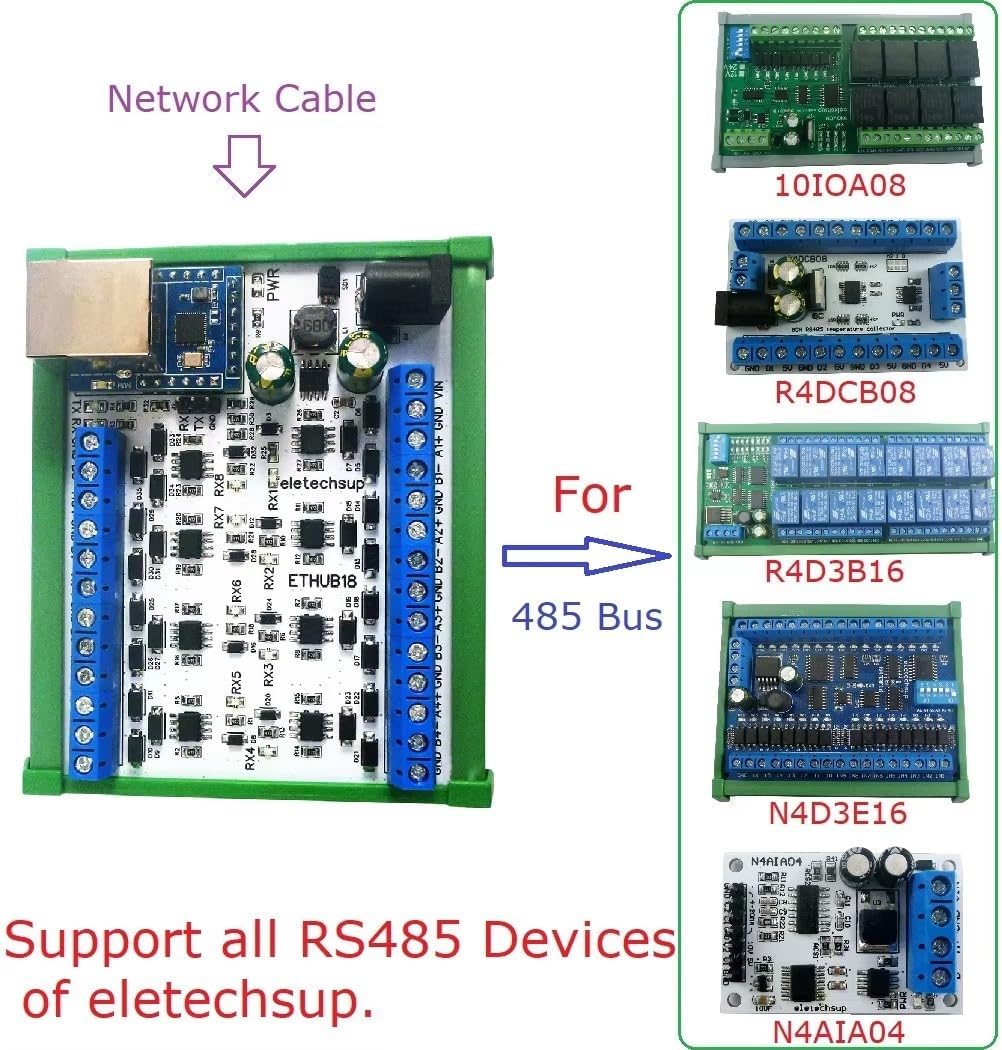

DescriptionReport ItemProduct Name: 8CH DC12-24V Ethernet Network RS485 HUB Converter For UDP TCP Modbus TCP RTU MQTT HTTP PLC Configuration SoftwarePackage inlcuded:1PCS ETHUB18 DC 8-30V 1 Ethernet to 8 RS485 HUB ModuleDescription:Working voltage : DC 12V/24V (DC 7-30V)Working current : 18-25mAWork Mode: UDP,TCP,Modbus TCP to RTU,MQTT,HTTP1 port Ethernet interface TO 8 port RS485 interface converterTVS anti-surge protectionThe default baud rate is 115200BPS. The baud rate can be selected by WEB settings1200 2400 4800 9600 19200 38400 57600 115200 230400BPSThe parity can be none parity, even parity and odd paritySize: 99mm*87mm*44mm(Only PCB Board);96mm*72mm*25mm(with Din Rail Box)Weight: 62g(Only PCB Board);140g(with Din Rail Box)For more information, please contact meApplicationEthernet to 8 port RS485Support all RS485 devices of eletechsup, such as:10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04Smart Home,Home Automation ,Wiser Home;Security MonitoringIdentification system;IP CameraLED Lamp DriversAutomatic curtain controlDIN rail Box parameters:Product model: UM72Color:GreenWidth: suitable for PCB board width UM72(72mm)Insulation grade: flame-retardant VO gradeBackplane length: suitable for 96 mm PCB boardsNet weight: 34gInstallation: DIN35 and C45 rail

• Working voltage : DC 12V/24V (DC 7-30V)
• Working current : 18-25mA

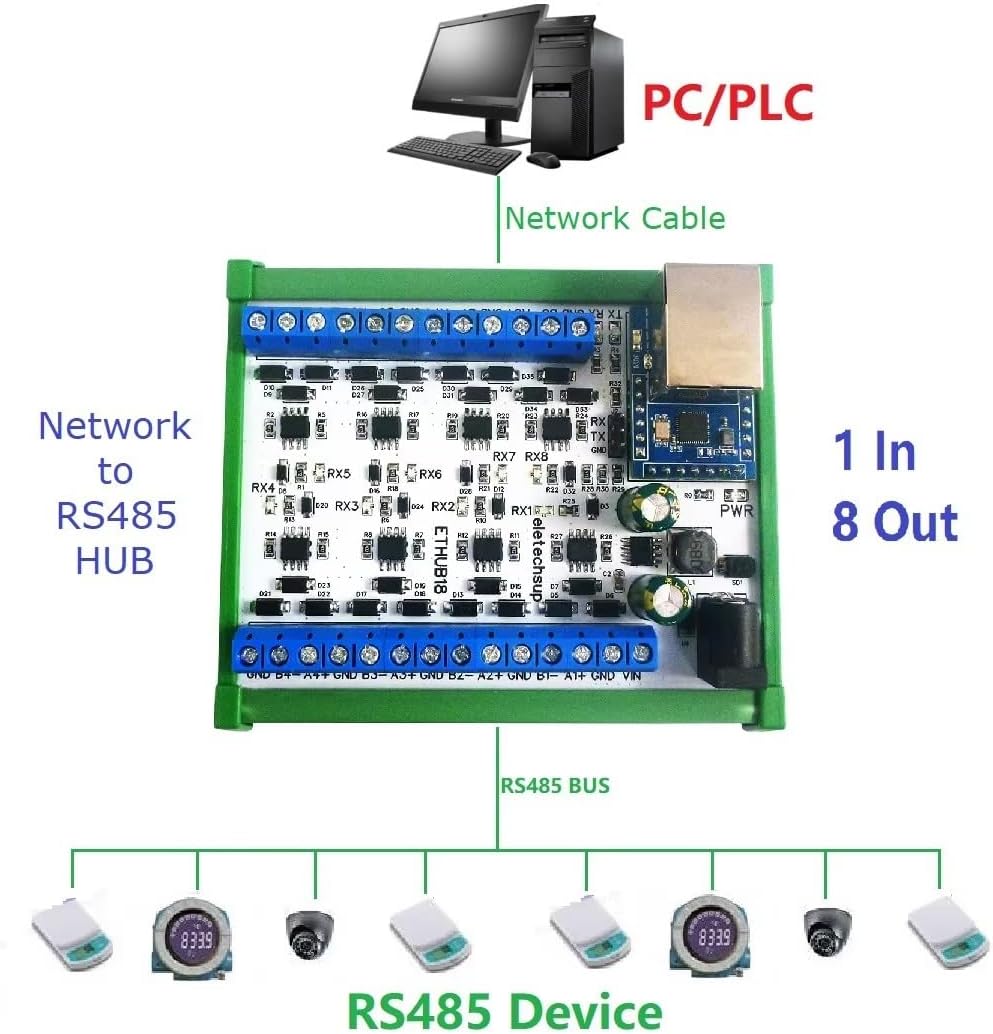

• 1 port Ethernet interface TO 8 port RS485 interface converter
• TVS anti-surge protection
• The parity can be none parity, even parity and odd parity
