Laser Module VLM-635-58 LPO-D10-F90 Red Crosshair Laser Module Fan Angle 10° Uniform Line, Class I Laser, Less Than 0.39mW (Focus: 90cm)

The newly developed crosshairs lens come with various fan angles and they produce high quality uniform crosshairs laser lines. These crosshairs laser modules provide target aid in alignment and position task. Ideal for machine vision, patient alignment, CNC milling, chassis alignment, quality control, textile industry and printing industry. They are available at 10cm, 20cm, 40cm, and 90cm focus length; red and green wavelength; Class I and Class II laser class. Please search by using the keywords Quarton VLM-520-56, Quarton VLM-635-56, Quarton VLM-520-58, or Quarton VLM-635-58 to find out more product options on Amazon. APPLICATIONS: ideal for Machine vision. Automation industry. Image processing. Medical & Science. Scanning. Counting. Measurement.

• Fan Angle 10° Uniform Line. Line length: 17.5cm at 100cm (6" at 40 inches). High precision red crosshair laser module in compact size. Built with high precision glass crosshair lens and glass laser collimating lens for machine vision and laser alignment application.

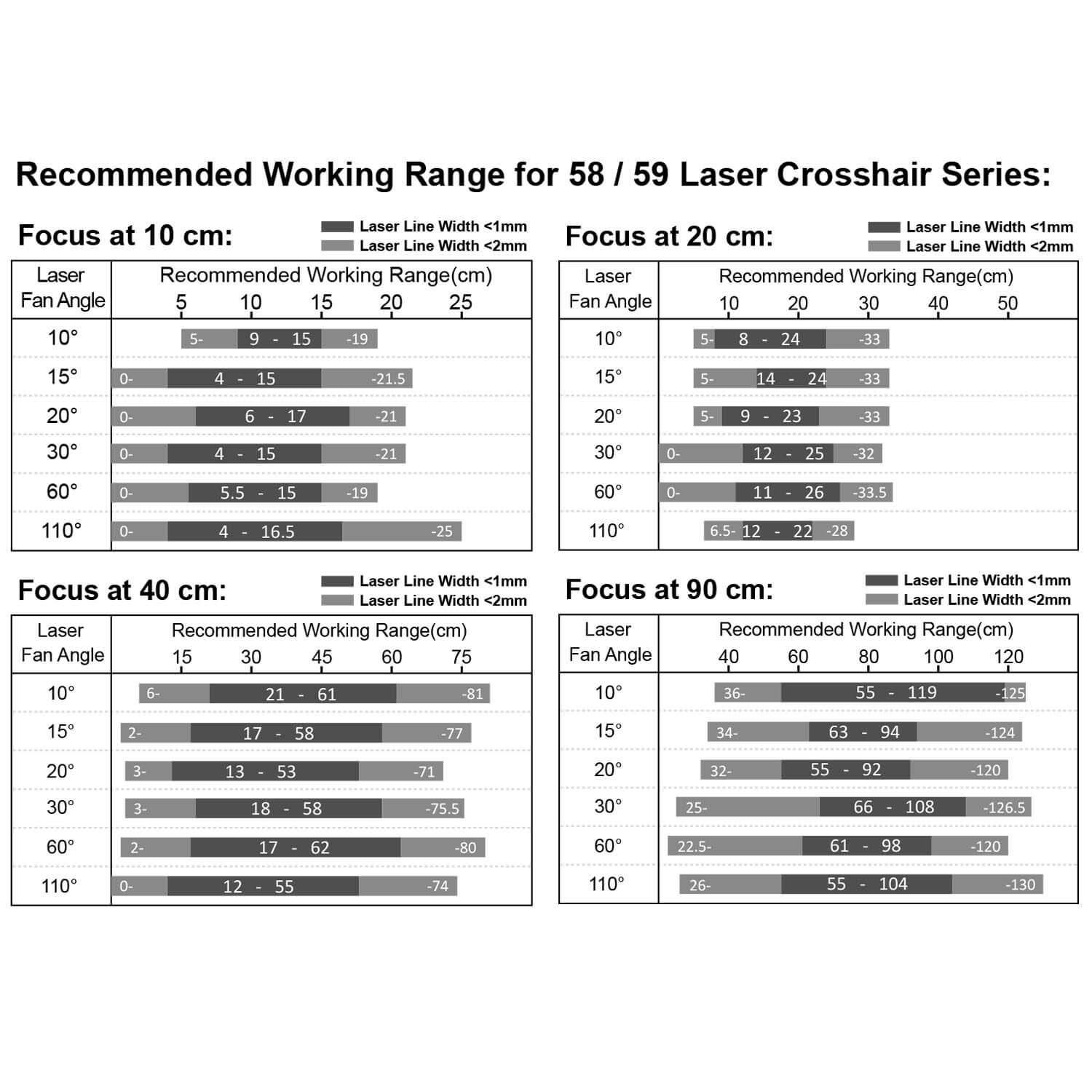

• Focus range: 90cm. Recommended working range: 36~125cm (14.17~49.21 inches). Best performance working range: 55~119cm (21.65~46.85 inches).
• Wavelength : 630~645 nm. Laser power output: Class I, less than 0.39mW (measured by 7mm aperture stop at the position of 10 cm, tested according to the standard IEC-60825-1.)
• Dimensions : Ø10 x 40 mm (Ø0.39" x 1.575"). Weight: 22g (0.776 oz.)

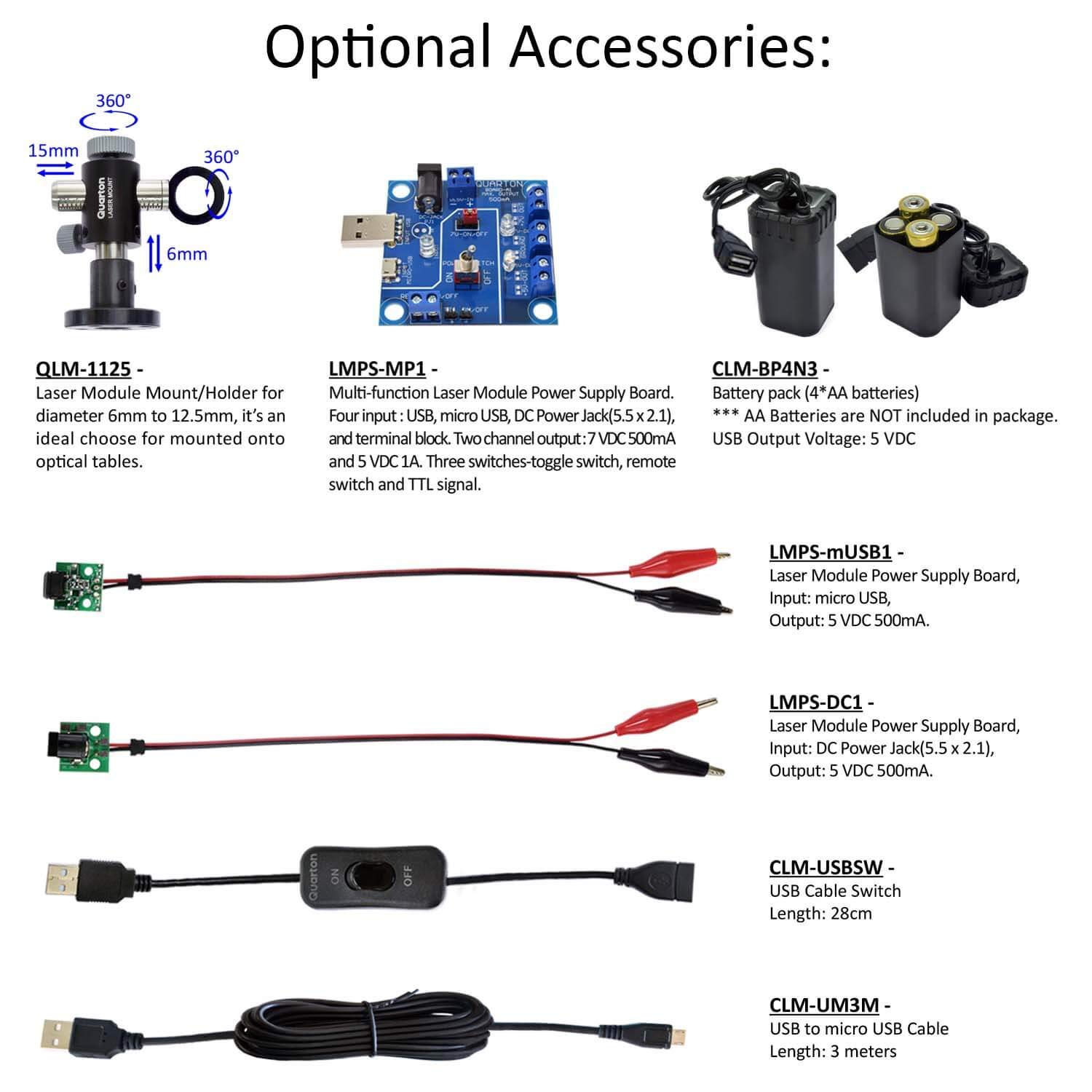

• 3~6 VDC operation. Connection type : Lead wire. This laser module is not supposed to be sold with additional power source, power supply, or wiring terminals. Because modules are simply components, and it means that you have to wire it to your own power source by yourself.
